Pulser Compatibility Guide



Overview

Updated: 03/29/2024



The CloudBox & CloudLink have 3 terminals used to connect a pulser to the system. The 3 terminals are used for pulser power, pulse input, and ground. The CloudBox and CloudLink share the same terminals but have different labeling:

CloudBox V1.4

12V+ CloudBox_1.4.png
Pulse
GND
Level



CloudBox V1.0-1.3

PWR CloudBox_1.0-1.3.png
ENC/INP
GND

PWR and 12V+ are the same electrically, just have different labels. The same is true for Pulse and ENC INP. The CloudBox V1.4 also has a level terminal for tank level sensors, but this is currently unused.



CloudLink V1.4

12V+ CloudLink_1.4.png
ENC/INP
GND



CloudLink 1.0-1.3

PWR CloudLink_1.0-1.3.png

ENC/FILL

GND



As with the difference between the 1.4 CloudBox and the 1.4 CloudLink. The only difference is the labels. PWR is the same as 12V+ DC output. ENC INP / ENC FILL is the same as the pulse input.



Terminal Explanation

12V+ (PWR)

The 12V+ terminal is used for pulsers that require a 12VDC power source. Typically these pulses are 3 wire active pulsers.



Pulse (ENC INP / ENC FILL)

The pulse input terminal is used to receive the pulses from the metering device. This terminal is required for both active (3 wire) and passive (wire pulsers).



GND (DC Ground)

The GND terminal is also required for all pulsers and is the return path for all pulsers, whether it’s an active or passive pulser.



Best Practices

  1. Pulser wires should be in separate low voltage conduit than AC and power wires
  2. Pulser wire should be twisted pair
  3. Pulser wire should have a shield / drain that is connected to earth on one end only
  4. Keep pulser wires at a minimum of one inch away from AC / power wires.



Recommended Pulser Wire

Belden 3106A

https://catalog.belden.com/techdata/EN/3106A_techdata.pdf



Pulsers



Balcrank Impulse Meter

The Balcrank Impulse Meter is a 2 wire passive pulser that connects to Pulse / ENC INP and GND. The polarity of the wires do not matter.


CloudBox / CloudLink

Balcrank Impulse

12V+ / PWR

DO NOT USE

Pulse / ENC INP

Red

GND

Black

Level

DO NOT USE

CloudBox CloudLink
2_wire.png 2_wire__ENC_INP___Ground_.png



GPI

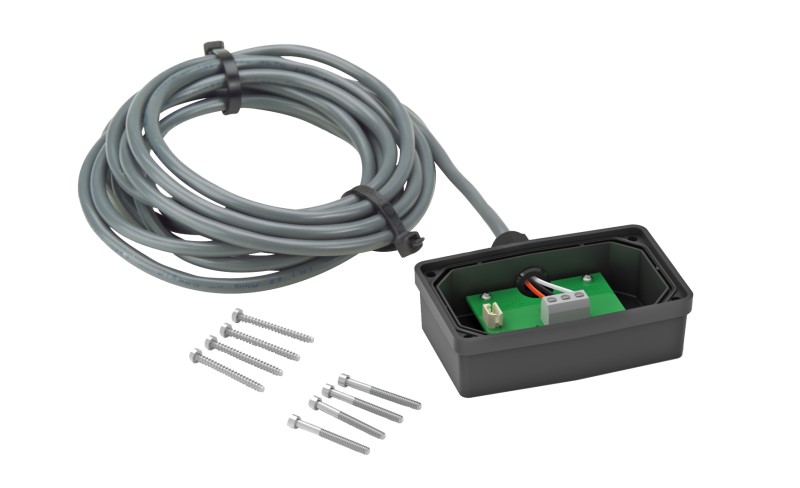

GPI Conditioned Output Module

The GPI conditioned output module is a 3 wire active pulser. GPI MANUAL


CloudBox / CloudLink

GPI Conditioned Output Module

12V+ / PWR

Red

Pulse / ENC INP

White

GND

Black

Level

DO NOT USE

CloudBox CloudLink
3_wire.png 3_wire.png



GPI Flowmec 025

The Flowmec 025 is a 3 wire active pulser.

CloudBox / CloudLink

GPI Conditioned Output Module

12V+ / PWR

+V

Pulse / ENC INP

Signal

GND

-0V

Level

DO NOT USE

CloudBox CloudLink
3_wire.png 3_wire.png



GPI Flowmec RT14

The Flowmec RT14 is a 3 wire active pulser.

CloudBox / CloudLink

Flowmec RT14

12V+ / PWR

Red

Pulse / ENC INP

White

GND

Black

Level

DO NOT USE

CloudBox CloudLink
3_wire.png 3_wire.png



ICS (Integrated Control Systems)

ICS GPI2-110

ICS GPI2-110 MANUAL



CloudBox / CloudLink

ICS GPI2-110

12V+ / PWR

DO NOT USE

Pulse / ENC INP

Red

GND

Red

Level

DO NOT USE

CloudBox CloudLink
5_wire.png 5_wire.png



ICS GPI2-12

ICS GPI2-12 Manual



CloudBox / CloudLink

ICS GPI2-12

12V+ / PWR

Orange

Pulse / ENC INP

Red

GND

Red & Black

Level

DO NOT USE

CloudBox CloudLink
Diagram_1.png Diagram_1.png



ICS MR1-110

ICS MR1-110 Fill-Rite Manual



CloudBox / CloudLink

ICS MR1-110

12V+ / PWR

DO NOT USE

Pulse / ENC INP

Red

GND

Red

Level

DO NOT USE

CloudBox CloudLink
5_wire.png 5_wire.png



ICS MR1-12

ICS MR1-12 Fill-Rite Manual



CloudBox / CloudLink

ICS MR1-12

12V+ / PWR

Orange

Pulse / ENC INP

Red

GND

Red & Black

Level

DO NOT USE

CloudBox CloudLink
Diagram_1.png Diagram_1.png
  • Note: If there are blue wires, then the pulser is a dual output variant. These

wires do not need to be plugged into FuelCloud unless the second output is needed.



For sensor installation help see here



ICS SP1-110

ICS SP1-110 MANUAL

CloudBox / CloudLink

ICS SP1-110

12V+ / PWR

DO NOT USE

Pulse / ENC INP

Red

GND

Red

Level

DO NOT USE

CloudBox CloudLink
5_wire.png 5_wire.png

ICS SP1-12

ICS SP1-12 MANUAL



CloudBox / CloudLink

ICS SP1-12

12V+ / PWR

Orange

Pulse / ENC INP

Red

GND

Red & Black

Level

DO NOT USE

CloudBox CloudLink
Diagram_1.png Diagram_1.png
  • Note: If there are blue wires, then the pulser is a dual output variant. These

wires do not need to be plugged into FuelCloud unless the second output is needed.



For sensor installation help see here

ICS VR1-110

ICS VR1-110 MANUAL



CloudBox / CloudLink

ICS VR1-110

12V+ / PWR

DO NOT USE

Pulse / ENC INP

Red

GND

Red

Level

DO NOT USE

CloudBox CloudLink
5_wire.png 5_wire.png

ICS VR1-12

ICS VR1-110 MANUAL



CloudBox / CloudLink

ICS VR1-12

12V+ / PWR

Orange

Pulse / ENC INP

Red

GND

Red & Black

Level

DO NOT USE

CloudBox CloudLink
Diagram_1.png Diagram_1.png
  • Note: If there are blue wires, then the pulser is a dual output variant. These

wires do not need to be plugged into FuelCloud unless the second output is needed.




For sensor installation help see here



Liquid Controls

Liquid Controls POD (Pulse Output Device)

The Liquid Controls POD is a 3 wire active pulser. The POD output includes 4 wires, but the CloudBox and CloudLink only require 3. (pulse rate: 555 to 1) https://lcmeter.com/manuals/Pulse%20Output%20Device.pdf

CloudBox / CloudLink

POD

12V+ / PWR

PWR

Pulse / ENC INP

CH A

GND

GND

Level

DO NOT USE

CloudBox CloudLink
3_wire.png 3_wire.png



Liquid SCAMP

The Liquid Controls SCAMP board is a 2 wire active pulser. The POD output includes 4 wires, but the CloudBox and CloudLink only require 3. (pulse rate: 555 to 1) https://lcmeter.com/manuals/Pulse%20Output%20Device.pdf

CloudBox / CloudLink

SCAMP

12V+ / PWR

PWR

Pulse / ENC INP

CH A

GND

GND

Level

DO NOT USE

CloudBox CloudLink
3_wire.png 3_wire.png



Macnaught

MX Series

The Macnaught MX series are 3 wire active pulsers. MX Manual



CloudBox / CloudLink

MX series

12V+ / PWR

Red

Pulse / ENC INP

White

GND

Black

Level

DO NOT USE

CloudBox CloudLink
3_wire.png 3_wire.png



OPW

OPW 500

The OPW 500 is a 2 wire passive pulser. OPW 500 MANUAL

CloudBox / CloudLink

OPW 500

12V+ / PWR

DO NOT USE

Pulse / ENC INP

Red

GND

Red

Level

DO NOT USE

CloudBox CloudLink
5_wire.png 5_wire.png



OPW 800f

The OPW 800 is a 2 wire passive pulser. OPW 800f MANUAL

800f

CloudBox / CloudLink

OPW 800f

12V+ / PWR

DO NOT USE

Pulse / ENC INP

Red

GND

Red

Level

DO NOT USE

CloudBox CloudLink
5_wire.png 5_wire.png



800f-12 (DC)

OPW 800f MANUAL

CloudBox / CloudLink

OPW 800f-12

12V+ / PWR

Orange

Pulse / ENC INP

Red

GND

Red & Black

Level

DO NOT USE

CloudBox CloudLink
Diagram_1.png Diagram_1.png



Pisui

Piusi K24

The Piusi K24 is a 2 wire passive pulser that connects to Pulse / ENC FILL and GND. The polarity of the wires do not matter. PISUI K24 MANUAL

CloudBox / CloudLink

Piusi

12V+ / PWR

DO NOT USE

Pulse / ENC INP

Red

GND

Black

Level

DO NOT USE

CloudBox CloudLink
2_wire.png 2_wire__ENC_INP___Ground_.png



PMP



PMP Rapid-Fire

The PMP Rapid-Fire is a 2 wire passive pulser. PMP Rapid-Fire MANUAL

CloudBox / CloudLink

PMP Rapid-Fire

12V+ / PWR

DO NOT USE

Pulse / ENC INP

Red

GND

Red

Level

DO NOT USE

CloudBox CloudLink
5_wire.png 5_wire.png



Tuthill

Tuthill TS30

The Tuthill TS30 has a SCL board that can be used to convert the quadrature output to a single channel single that FuelCloud can interface with.



CloudBox / CloudLink

TS30

12V+ / PWR

V

Pulse / ENC INP

A

GND

Common

Level

DO NOT USE

CloudBox CloudLink
3_wire.png 3_wire.png



Note the SCL board is an optional part on the TS30, but is required for FuelCloud.



TSC (Total Control Systems)



TCS DMP100 / RMP100

The TCS DMP100 / RMP100 is a quadrature pulser that can be used as a single channel pulser with FuelCloud.



CloudBox / CloudLink

DMP100 / RMP100

12V+ / PWR

VIN

Pulse / ENC INP

CH A

GND

GND

Level

DO NOT USE

CloudBox CloudLink
3_wire.png 3_wire.png



Note: The DMP100 / RMP100 must be set for 6-30V otherwise it could be damaged.



Veeder-Root

Veeder-Root 7671

The Veeder-Root 7697/7671 are 3 wire active pulsers. Veeder-Root 7697/7671 MANUAL

There is a 4th earth green wire that does not connect to FuelCloud hardware and connects to earth.



CloudBox / CloudLink

Veeder-Root 7671

12V+ / PWR

Red

Pulse / ENC INP

Black

GND

White

Level

DO NOT USE

CloudBox CloudLink
Diagram_2.png Diagram_2.png



Veeder-Root 1871 / 7697

The Veeder-Root 1871 is a 2 wire passive pulser that connects to Pulse / ENC FILL and GND. The polarity of the wires do not matter.





CloudBox / CloudLink

Veeder-Root 1871 / 7697

12V+ / PWR

DO NOT USE

Pulse / ENC INP

Black

GND

Black

Level

DO NOT USE

CloudBox CloudLink
Diagram_6.png Diagram_6.png



Meters With Pulse Outputs

Endress-Hauser

Promag P 300

The Promag is a 2 wire passive pulser.Endress-Hauser Promag P 300 Manual

CloudBox / CloudLink

Promag P 300

12V+ / PWR

DO NOT USE

Pulse / ENC INP

Red

GND

Black

Level

DO NOT USE

CloudBox CloudLink
2_wire.png 2_wire__ENC_INP___Ground_.png

The Promag P 300 must be set to passive. The pulse rate set on FuelCloud will the 1 / value per pulse.



Fill-Rite

Fill-Rite 900CDP Without the IS Barrier

The Fill-Rite 900CDP is a 3 wire active pulser. Fill-Rite 900CDP MANUAL



CloudBox / CloudLink

Fill-Rite 900CDP

12V+ / PWR

+

Pulse / ENC INP

S

GND

-

Level

DO NOT USE

CloudBox CloudLink
3_wire.png 3_wire.png



Fill-Rite 900CDP With the IS Barrier

The Fill-Rite 900CDP when used with the intrinsically safe barrier is a 2 wire passive pulser. Fill-Rite 900CDP MANUAL



CloudBox / CloudLink

Fill-Rite 900CDP W/ IS Barrier

12V+ / PWR

DO NOT USE

Pulse / ENC INP

1

GND

3

Level

DO NOT USE

CloudBox CloudLink
2_wire-1.png 2_wire__Pulse_x2_.png



Fill-Rite FR302DPU

The Fill-Rite FR302DPU is a passive pulse. The polarity of the yellow and black wires do not matter. Fill-Rite FR302DPU



CloudBox / CloudLink

Fill-Rite FR203DPU

12V+ / PWR

DO NOT USE

Pulse / ENC INP

Yellow

GND

Black

Level

DO NOT USE

CloudBox CloudLink
Diagram_3.png Diagram_3.png



Sotera 825P / 850P

The Sotera 825P/ 850P is a 3 wire active pulser. The Sotera output includes 6 wires, but the CloudBox and CloudLink only require 3. SOTERA 825P / 850P MANUAL



CloudBox / CloudLink

Sotera 825P / 850P

12V+ / PWR

Brown

Pulse / ENC INP

White

GND

Grey

Level

DO NOT USE

CloudBox CloudLink
Diagram_4.png Diagram_4.png



Tecalemit

Tecalemit FMOG

The Tecalemit FMOG is a 3 wire active pulser. The FMOG output includes 4 wires, but the CloudBox and CloudLink only require 3.



CloudBox / CloudLink

Tecalemit FMOG

12V+ / PWR

Yellow

Pulse / ENC INP

Green

GND

Brown

Level

DO NOT USE

CloudBox CloudLink
Diagram_7.png Diagram_7.png



Dispensers

Bennett

Bennett 3000 Series

The Bennett 3000 series dispensers have a 2 wire digital pulse output that connects to Pulse / ENC FILL and GND. The polarity of the wires IS important.



CloudBox / CloudLink

Bennett 3000

12V+ / PWR

DO NOT USE

Pulse / ENC INP

TS1: Pin 1 red (hose 1) Pin 2 blue (hose 2)

GND

TS1: Pin 5 red (hose 1) Pin 6 blue (hose 2)

Level

DO NOT USE

CloudBox CloudLink
2_wire.png 2_wire__ENC_INP___Ground_.png



Authorize

CloudBox / CloudLink

Bennett 3000 Authorize

Hot

TS3: Pin 13 (hose 1) Pin 14 (hose 2)

Neutral

TS3: Pin 15 (hose 1) Pin 16 (hose 2)

Handle Detect (In-use)

TS2: Pin 10 (hose 1) Pin 12 (hose 2)


Gasboy

Atlas 9800/9100/8800/8700

The Atlas dispensers have a 2 wire digital pulse output that connects to Pulse / ENC FILL and GND. The polarity of the wires IS important.



CloudBox / CloudLink

Gasboy Atlas

12V+ / PWR

DO NOT USE

Pulse / ENC INP

Red (hose 1) / Green (hose 2)

GND

White (used for both hoses)

Level

DO NOT USE

CloudBox CloudLink
2_wire.png 2_wire__ENC_INP___Ground_.png





ICS

ICS GBE1 (discontinued)



ICS GBE2 (discontinued)



McLaren

DF-501

CloudBox / CloudLink

McLaren DF-501

12V+ / PWR

DO NOT USE

Pulse / ENC INP

18

GND

19

Level

DO NOT USE

CloudBox CloudLink
2_wire.png 2_wire__ENC_INP___Ground_.png



PMC

PMC Commander

The PMC Commander can be programmed to work as a mechanical dispenser and therefore work with either the FuelCloud CloudBox or CloudLink. To program the PMC Commander the HHP-1 programmer must be used to set the following settings:

  • 080 Pulse Out Type: 0 (Volume)
  • 081 Volumetric Pulse Out Resolution: 2 (100:1)
  • 200 Operation Mode: 0 (Console Mode)
  • 610 Control Interface Type: 0 (Hardwire)

For additional information on the PMC Commander please contact PMC or visit their Website / Manual.



PMC Fuelhouse

The PMC Fuelhouse can be programmed to work as a mechanical dispenser and therefore work with either the FuelCloud CloudBox or CloudLink. To program the PMC Fuelhouse the following jumpers, switches must be configured:

  • Dip Switch 1: Off
  • Dip Switch 2: On
  • Jumper 7: Cut

Guide

CloudBox / CloudLink

PMC Fuelhouse

12V+ / PWR

DO NOT USE

Pulse / ENC INP

Pulse +

GND

Pulse -

Level

DO NOT USE

CloudBox CloudLink
2_wire.png 2_wire__ENC_INP___Ground_.png



Wayne

Wayne 3/G7XXX

The Wayne dispenser has a pulse output that is a 2 wire digital pulser that connects to Pulse / ENC FILL and GND. The polarity of the wires IS important.

CloudBox / CloudLink

Wayne 3/G

12V+ / PWR

DO NOT USE

Pulse / ENC INP

Pul A1 X+

GND

Pul A1 X-

Level

DO NOT USE

CloudBox CloudLink
2_wire.png 2_wire__ENC_INP___Ground_.png

JP1 jumper must be installed.



Registers

Liquid Controls

Liquid Controls Registers can work with either FuelCloud’s CloudBox / CloudLink or FuelCloud’s Truck System. FuelCloud recommends the use of the truck system with LCR’s as we can read exact volume, totalizers, delivery info, shift info, etc.

LCR-II

The Liquid Controls LCR-II has a 2 wire active pulse output that connects to Pulse / ENC FILL and GND. The polarity of the wires IS important. LCR-II WIRING DIAGRAM



CloudBox / CloudLink

LCR II

12V+ / PWR

DO NOT USE

Pulse / ENC INP

42

GND

41

Level

DO NOT USE

CloudBox CloudLink
2_wire.png 2_wire__ENC_INP___Ground_.png



LCR-600

The Liquid Controls LCR-600 has a 2 wire active pulse output that connects to Pulse / ENC FILL and GND. The polarity of the wires IS important. LCR-600 WIRING DIAGRAM



CloudBox / CloudLink

LCR 600

12V+ / PWR

DO NOT USE

Pulse / ENC INP

42

GND

41

Level

DO NOT USE

CloudBox CloudLink
2_wire.png 2_wire__ENC_INP___Ground_.png



LCR-iQ

The Liquid Controls LCR-iQ has a 2 wire active pulse output that connects to Pulse / ENC FILL and GND. The polarity of the wires IS important. LCR-iQ WIRING DIAGRAM



CloudBox / CloudLink

LCR iQ

12V+ / PWR

DO NOT USE

Pulse / ENC INP

51

GND

47

Level

DO NOT USE

CloudBox CloudLink
2_wire.png 2_wire__ENC_INP___Ground_.png



MidCom

MidCom 8000

MidCom E:Count

MidCom MCR-90

The MidCom register has a 2 wire pulse output that connects to Pulse / ENC FILL and GND. The polarity of the wires does not matter.



CloudBox / CloudLink

MCR-90

12V+ / PWR

DO NOT USE

Pulse / ENC INP

Pulse

GND

GND

Level

DO NOT USE

CloudBox CloudLink
2_wire.png 2_wire__ENC_INP___Ground_.png



TCS

TCS3000

The Total Control Systems TCS3000 register has a 2 wire pulse output that connects to Pulse / ENC FILL and GND. The polarity of the wires IS important. Additionally, a 33Ohm resistor is required between Pulse / ENC FILL and GND for FuelCloud to read pulses. The TCS3000 will be integrated into the FuelCloud Truck System in the future through a digital interface.



CloudBox / CloudLink

TCS3000

12V+ / PWR

DO NOT USE

Pulse / ENC INP

+

GND

GND

Level

DO NOT USE

CloudBox CloudLink
2_wire.png 2_wire__ENC_INP___Ground_.png



KEP

KEP SUPERtrol-1LE

The KEP SUPERtrol-1LE register has a 2 wire pulse output that connects to Pulse / ENC FILL and GND. The polarity of the wires IS important.



CloudBox / CloudLink

SUPERtrol-1LE

12V+ / PWR

DO NOT USE

Pulse / ENC INP

13 (Pulse Output +)

GND

14 (Pulse Output -)

Level

DO NOT USE

CloudBox CloudLink
2_wire.png 2_wire__ENC_INP___Ground_.png




Troubleshooting

Not Counting Pulses

CloudLink

The V1.4 CloudLink uses fuses for each pulse wiring terminal for a total of 15 fuses. Once the fuses are blown they are not fixable and require an RMA. When testing pulse terminals, make sure that all pulse wires are removed.

GND

To test if the fuses on GND terminals are blown, a continuity test can be performed between each GND terminal and the RS485 GND. If the GND terminal fuses are the only fuses blown, the GND terminal for RS485 can be used as a backup.

12V+

To test the CloudLink’s 12V+ terminal, ensure that the CloudLink has power and run a DC voltage test between the RS485 GND and each 12V+ terminal. The voltage for each 12V+ terminal should be a little over 11 volts DC.

ENC FILL

Similar to the 12V+ terminals, the ENC FILL terminals can also be tested with the RS485 GND terminal. Each terminal should read about 10 volts DC.

CloudBox

The V1.4 CloudBox does not have pulse fuses and generally does not have any issues with pulsers. The easiest way to check if the CloudBox can read pulses is to visually inspect the pulse LED next to pulser wiring terminals. The pulse LED will illuminate whenever there’s a closed circuit on the pulser.

Pulser

To test if the pulser is outputting a signal, disconnect the pulse wires from CloudBox or CloudLink. Connect one pulse wire to one multimeter probe and the other pulse wire to the other multimeter probe. Set the multimeter to continuity. Put the pump in bypass and pump fuel. If the multimeter does not beep indicating continuity then the pulser:

  1. Does not have power.
  2. Cannot read the mechanic gear of the meter / register
  3. Needs to be replaced.

Note: This only works for contact closure 2 wire pulsers.



Testing The CloudBox & CloudLink Pulser terminals

To verify that the pulse terminals on the CloudBox and CloudLink are operational, a tap test can be performed to see if volume is counted in the FuelCloud app.

  1. Disconnect all wires connected to the pulse terminals.
  2. Locate a small piece of wire that is stripped on both ends.
  3. Move the bypass switch of whichever pulse input you want to test to off.
  4. Using the FuelCloud app start the corresponding pump of the pulse terminal you want to test.
  5. Once the pump is on, place one end of the wire into GND and the other end of the wire into Pulse / ENC INP.
  6. Every time the wire is removed the FuelCloud app will report 0.1 gallons if the pulse rate is set to 10:1. This number will vary based on the pulse rate.



Was this article helpful?
0 out of 0 found this helpful

Comments

0 comments

Please sign in to leave a comment.

Articles in this section

Submit a request
