Updating Firmware Using the Firmware Portal (3.56 & Higher)

Prerequisites

• CloudBox 1.0-1.4
• CloudBox firmware is  3.56 or higher
  • Can be checked in the devices page on the FuelCloud website.

Installation

1. Connect to the FuelCloud Wi-Fi network on a laptop or phone. The Wi-Fi SSID will be FuelCloud_XXXXX where XXXXX are the last five digits of the CloudBox serial number.
2. Open a web browser (Internet Explorer cannot be used).

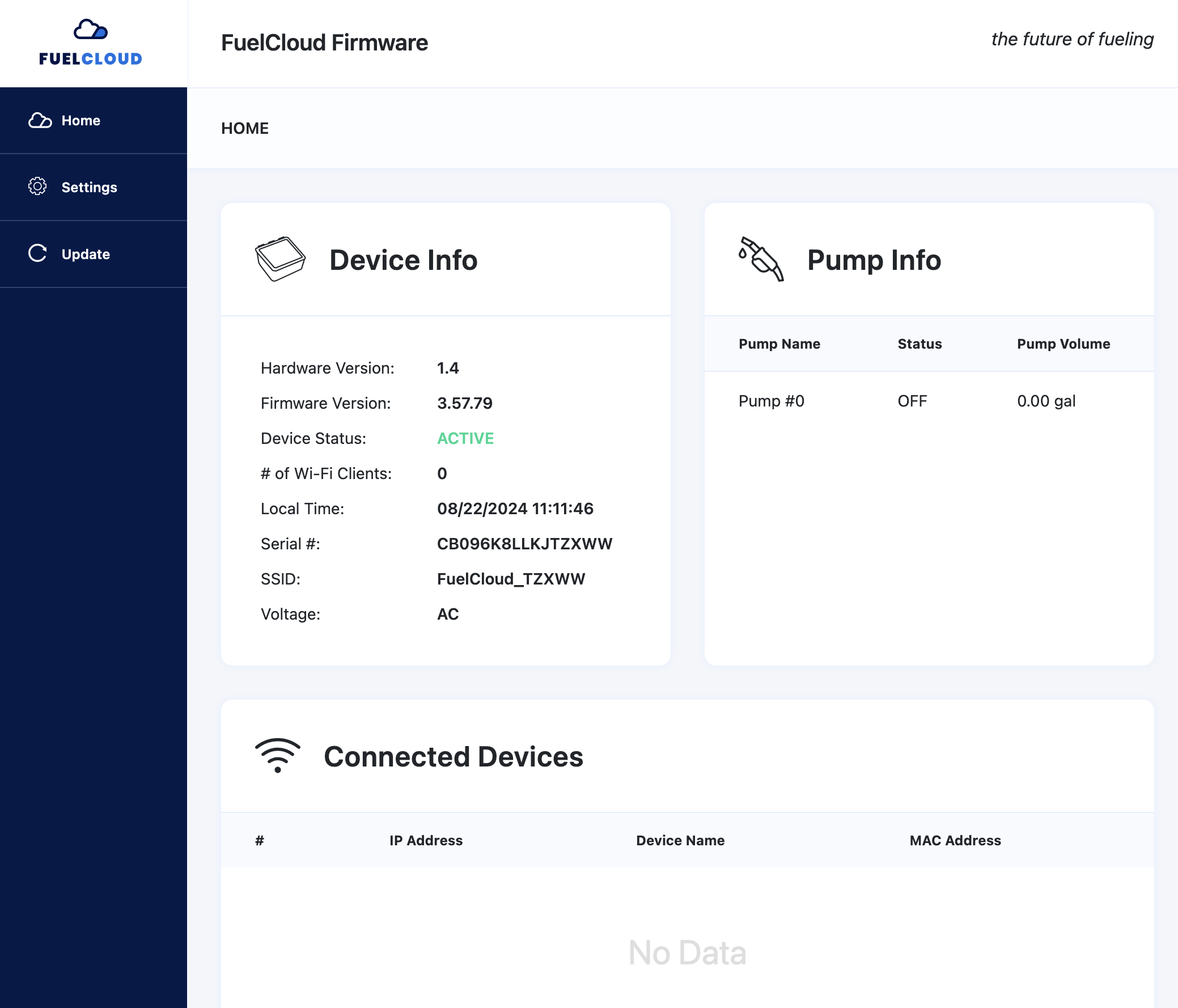

3. Navigate to 192.168.21.5:

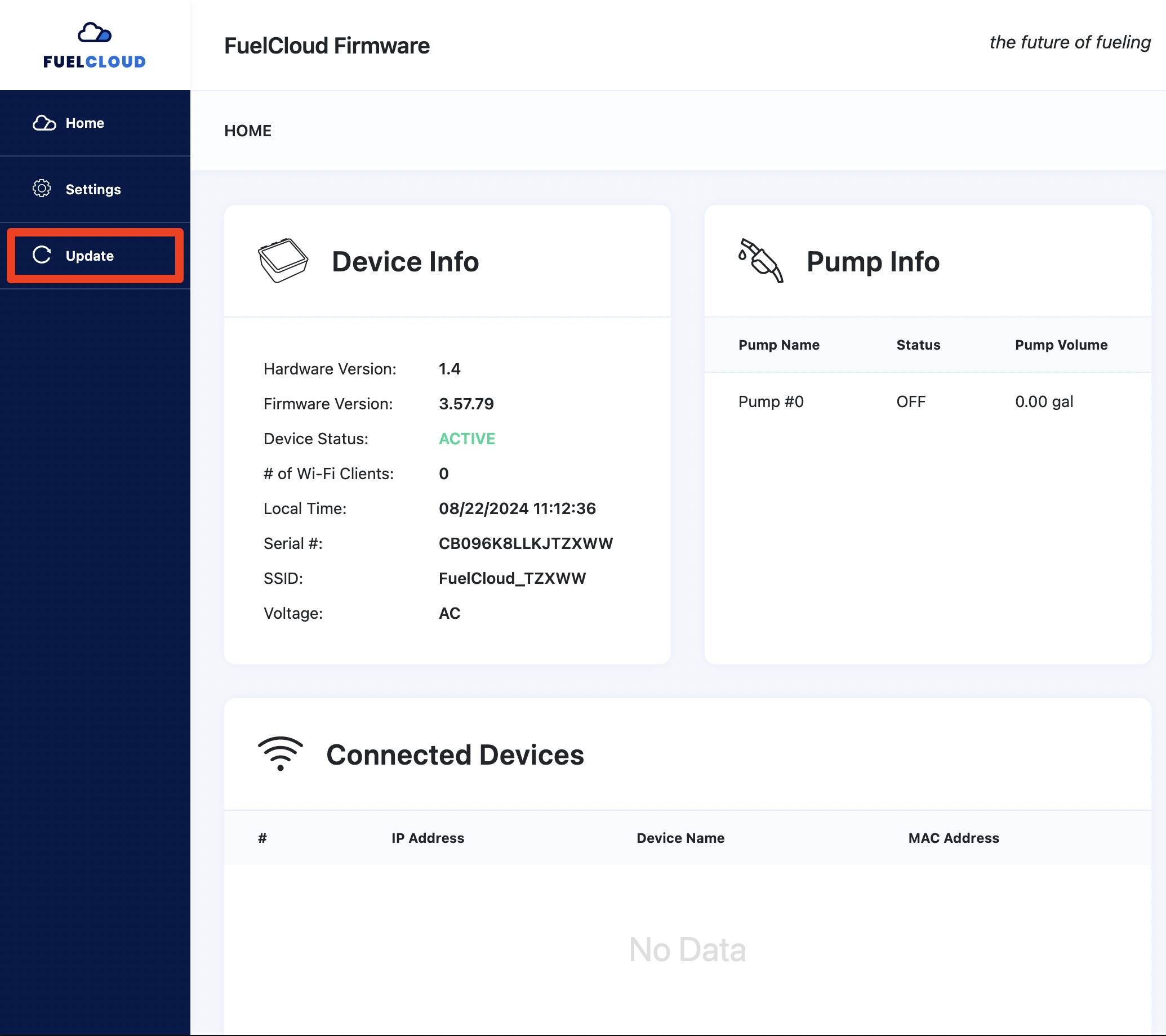

4. Select Update on the left pane:
5. The web portal with ask for a Username and Password:
   1. Username: admin
   2. Password: Cloud_XXXXX
   3. XXXXX = last five digits of the serial number
6. Select Choose file and select the firmware.bin file. The latest file can be found here

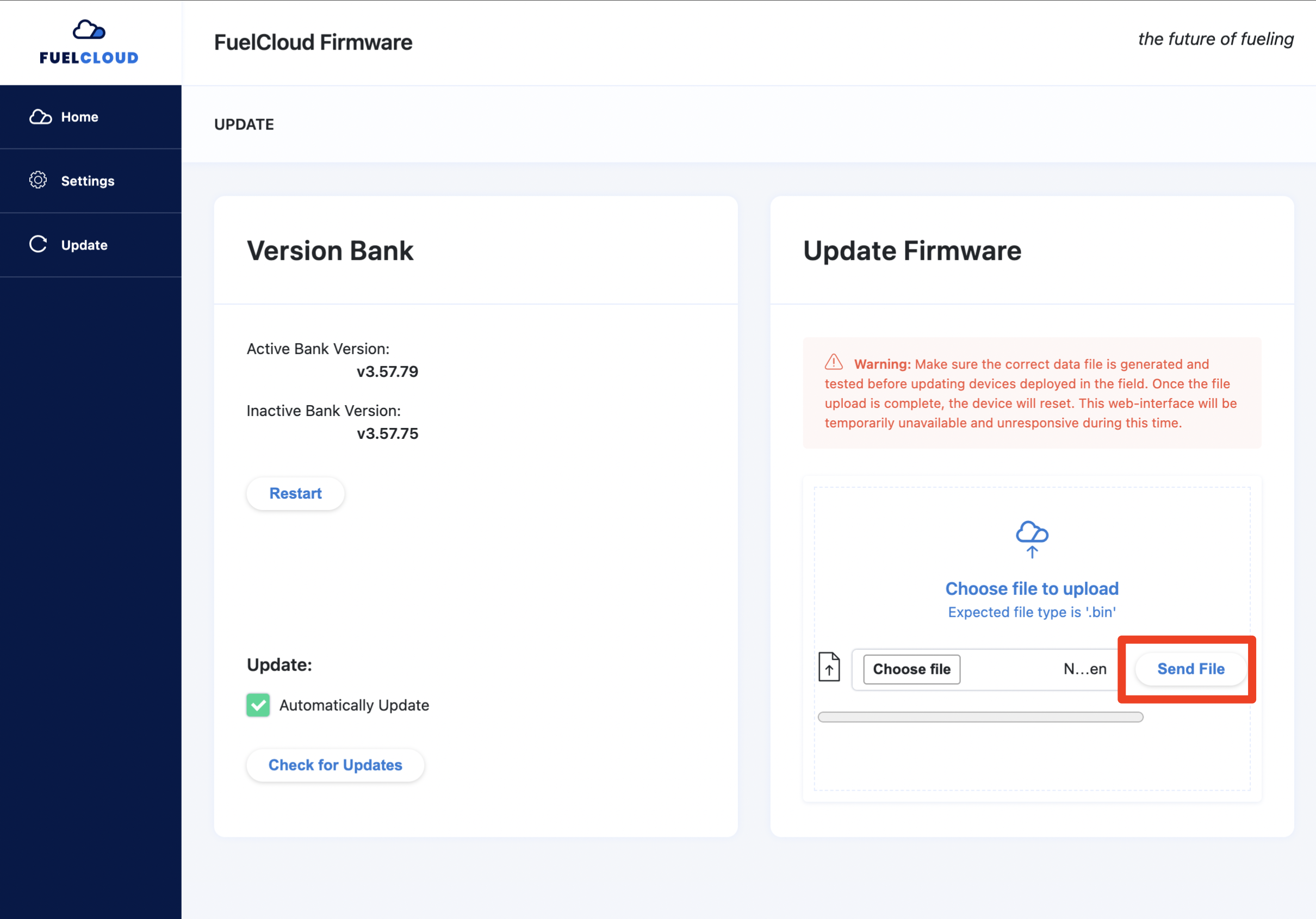

7. Select send:

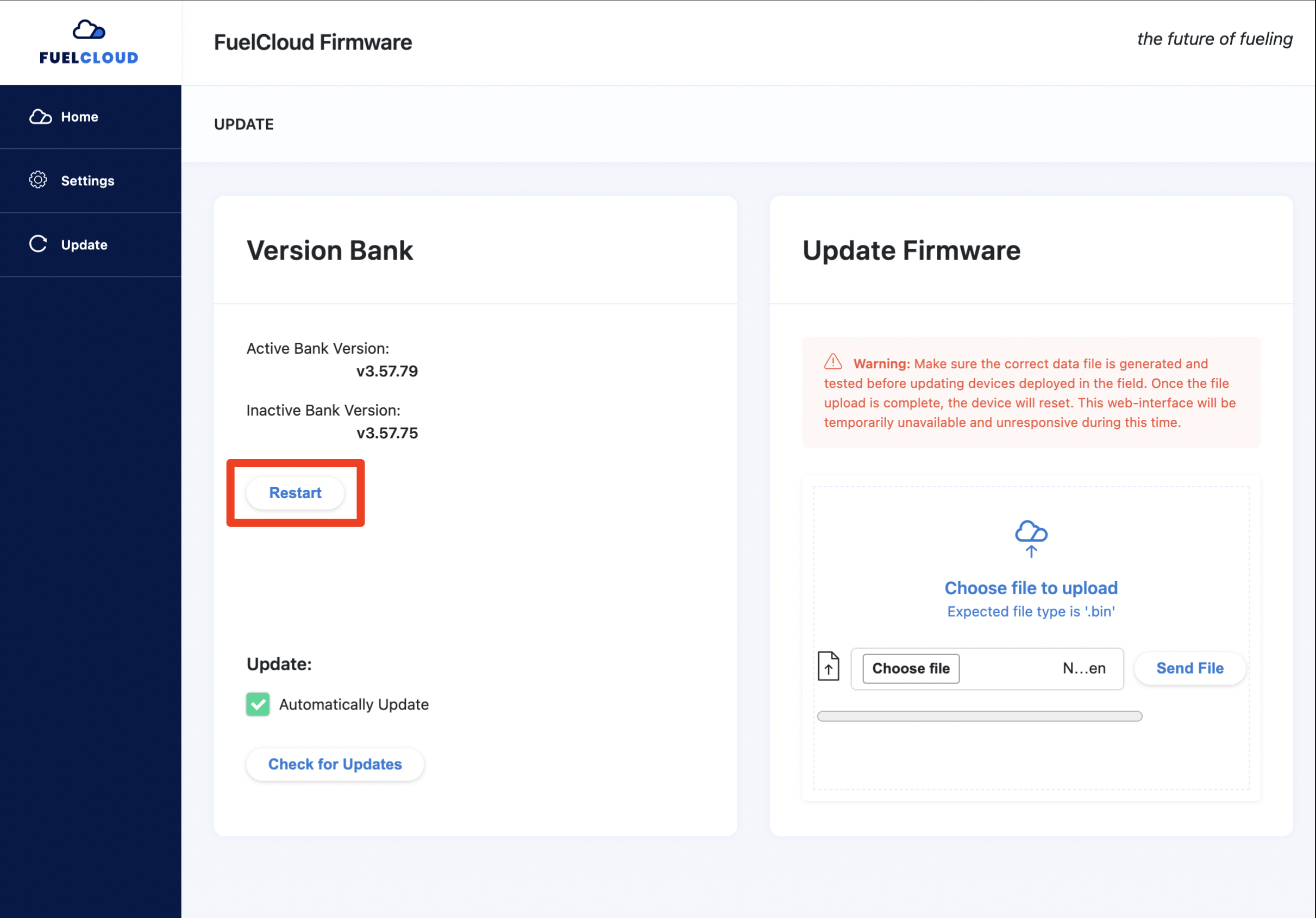

8. Once the file has uploaded, select Restart:
9. The CloudBox will take about 45 seconds to reboot and be on the new firmware version.

Automatic Updates

This feature is currently disabled.
