Ethernet Client Mode

Prerequisites

• CloudBox 1.0-2.0
• CloudBox 1.0-1.4 firmware is  3.57 or higher
• CloudBox 2 OS is on 1.0 or higher
  • Can be checked in the devices page on the FuelCloud website.

Installation

1. Connect to the FuelCloud Wi-Fi network on a laptop or phone. The Wi-Fi SSID will be FuelCloud_XXXXX where XXXXX are the last five digits of the CloudBox serial number.
2. Open a web browser (Internet Explorer cannot be used).

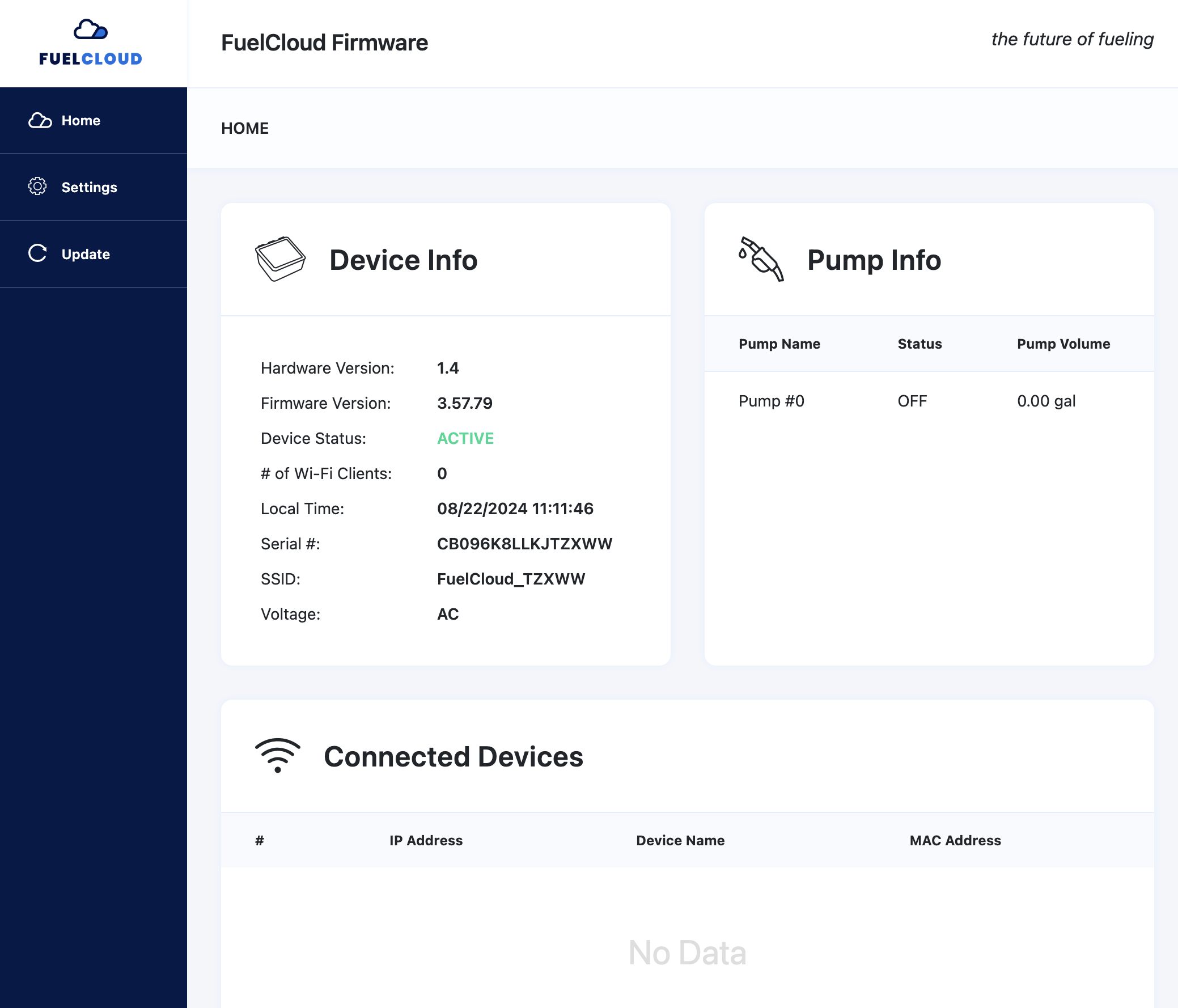

3. Navigate to 192.168.21.5:
4. Select Settings on the left pane:
5. The web portal with ask for a Username and Password:
   1. Username: admin
   2. Password: Cloud_XXXXX
   3. XXXXX = last five digits of the serial number

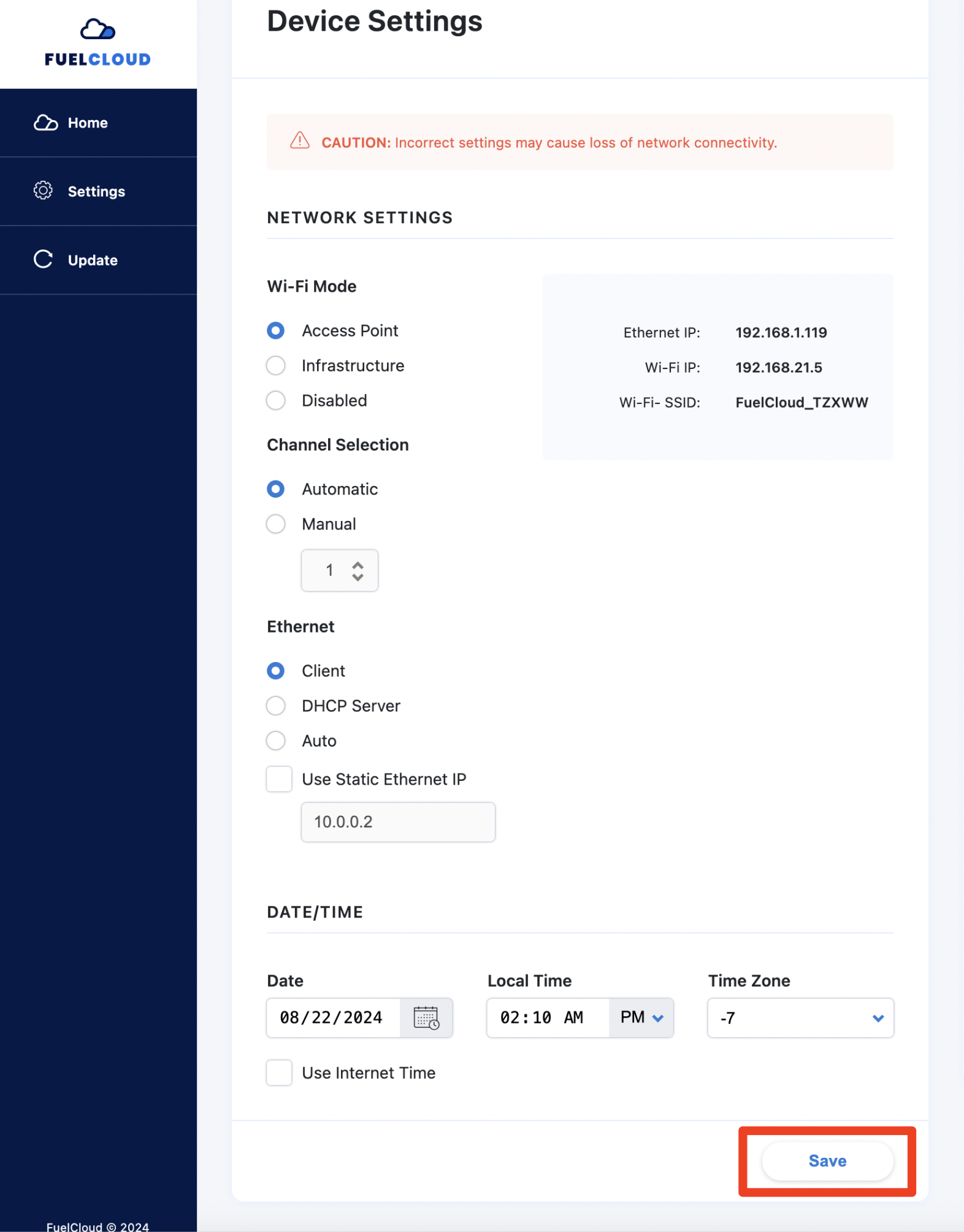

6. Select Client Mode:
7. Select Save. The CloudBox will reboot into ethernet client mode.
