On Otodata
- Navigate to your Otodata account (https://neevo.otodata.ca) and locate your Otodata API Key. You must have an Admin account with Otodata to access your API Key.

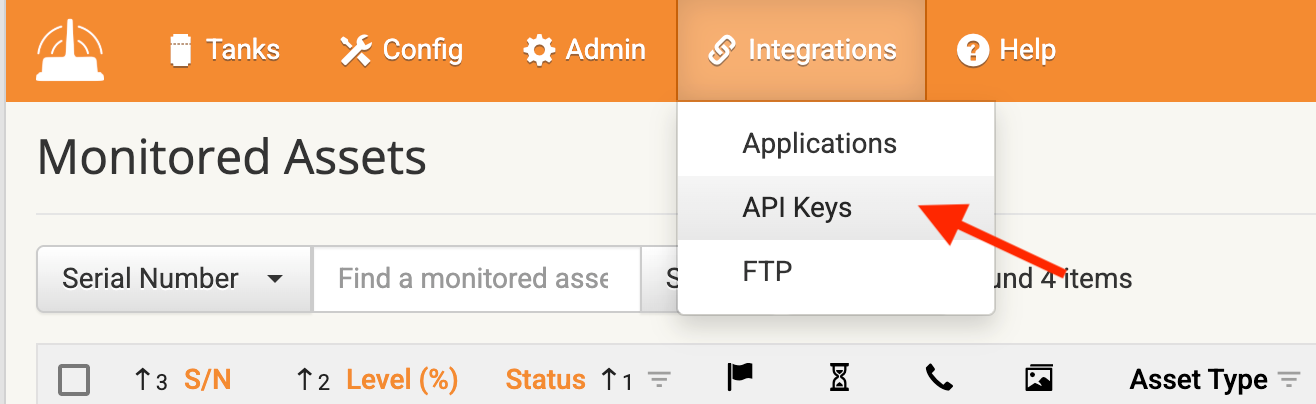

- Locate the Integrations drop down in your top navigation and select API Key.

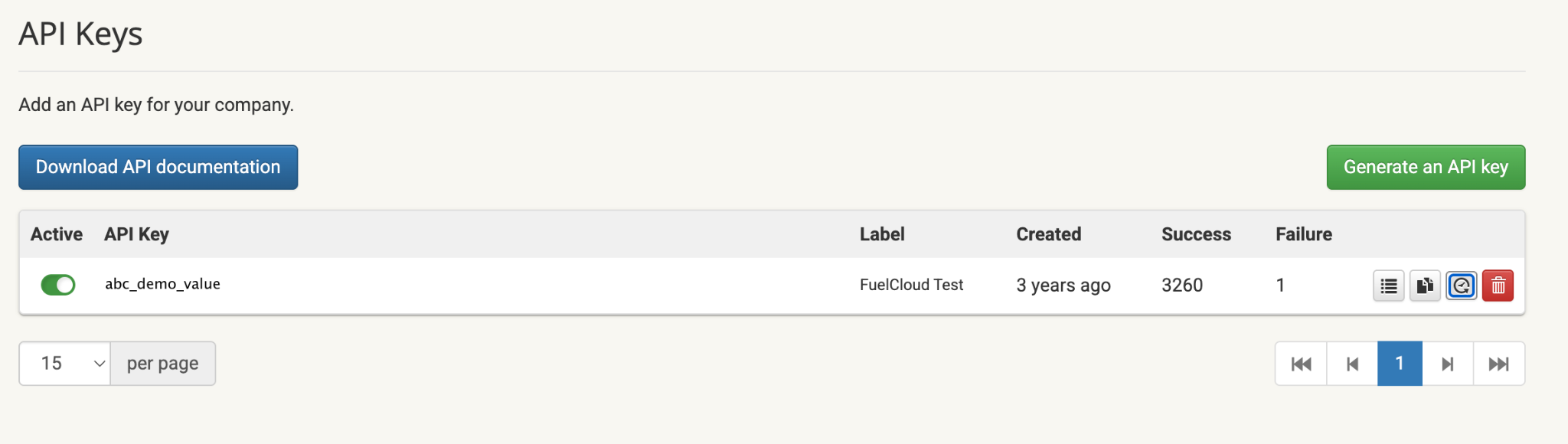

- Click to Generate a Key if not already done.
- Copy the API Key listed.
Adding A Tank Monitor On FuelCloud
-

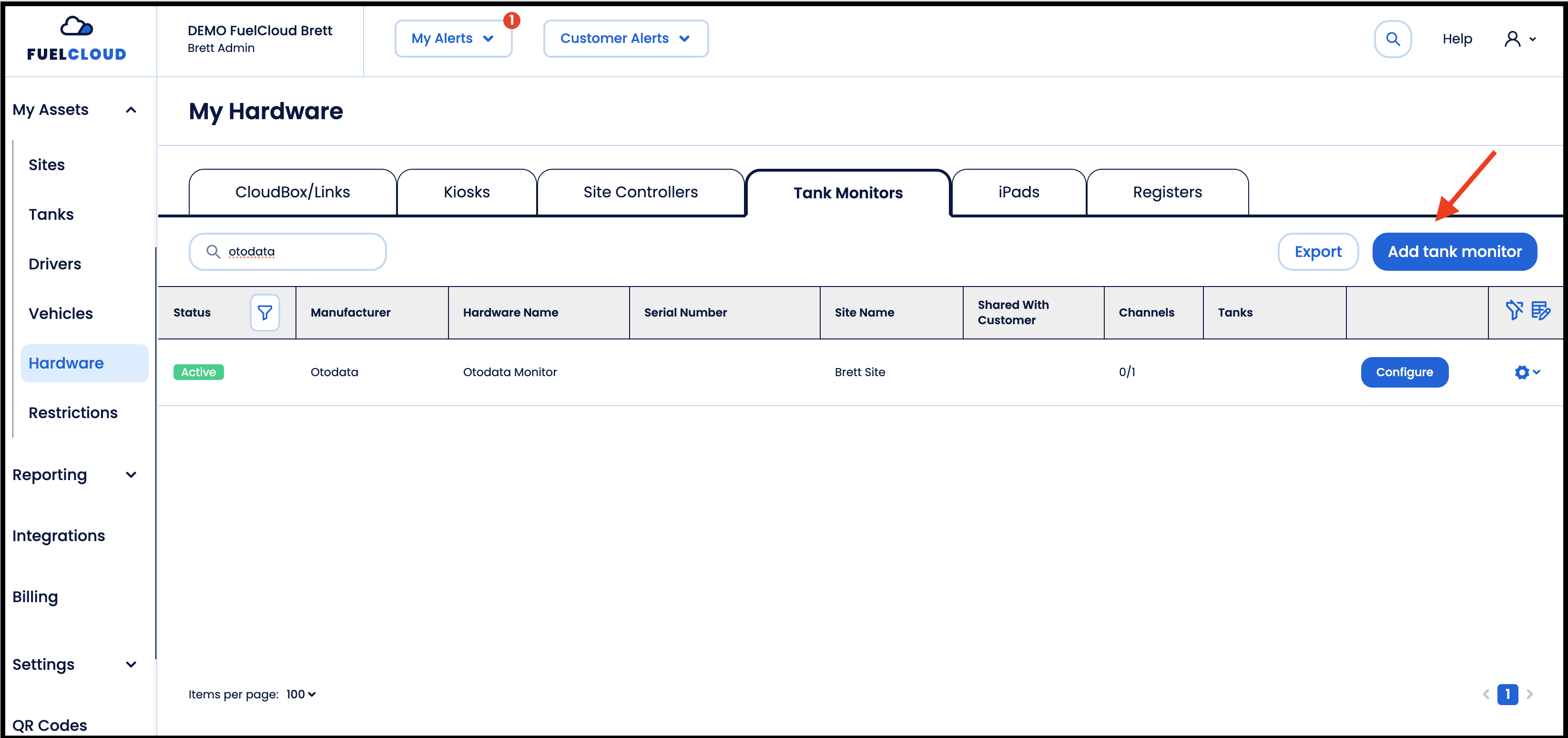

Navigate to your FuelCloud account in the My Assets > Hardware section and click the Tank Monitor tab and click Add Tank Monitor.
-

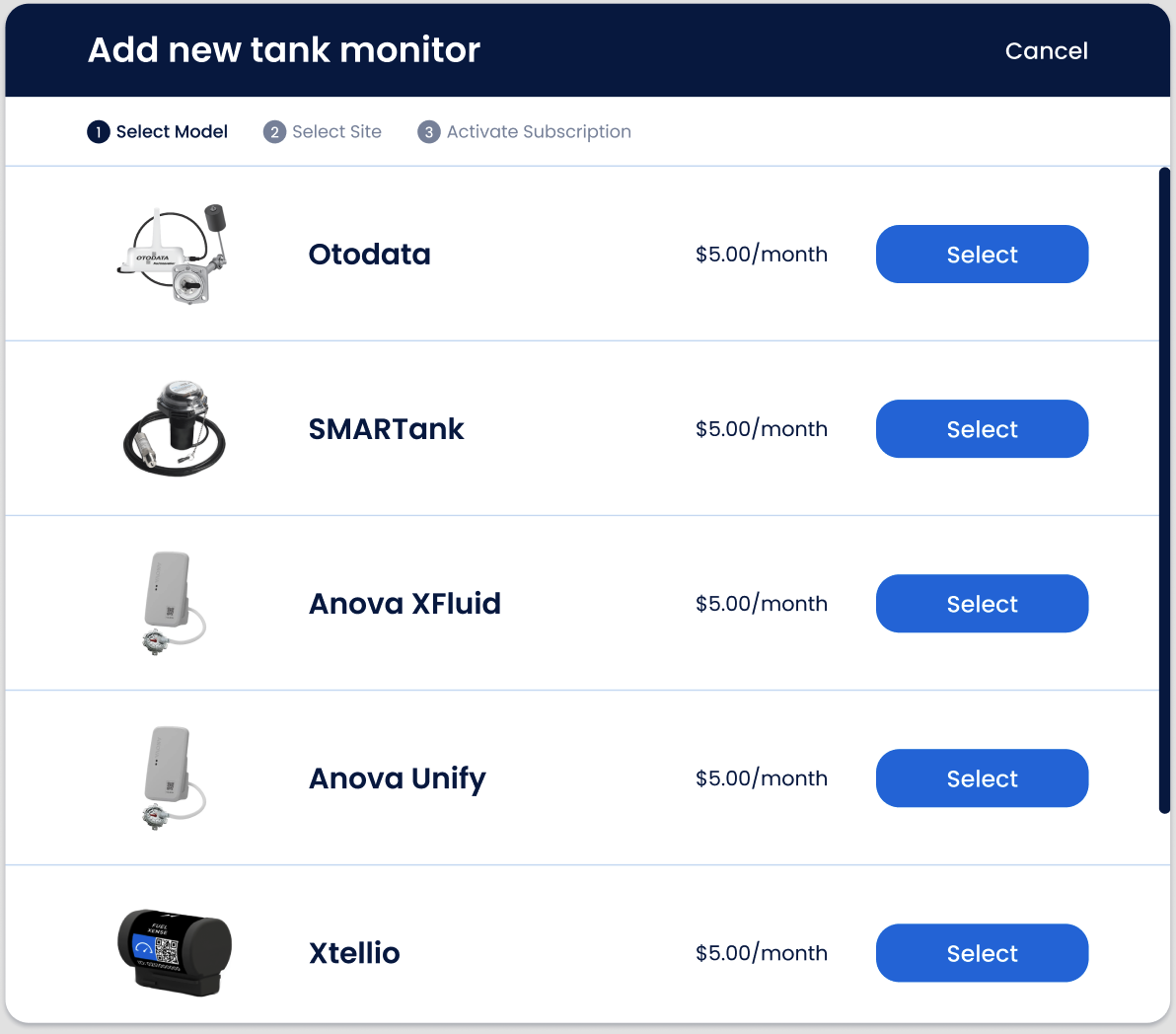

Select the Otodata Tank Monitor option.
-

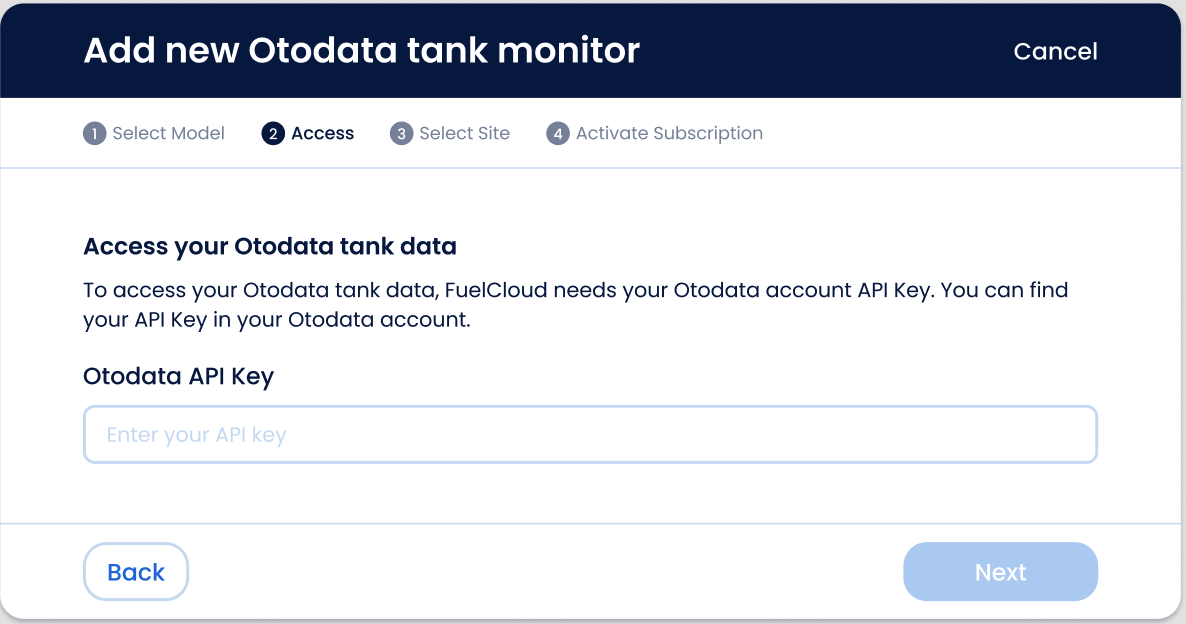

Enter or Paste the API Key you copied from your Otodata account.
-

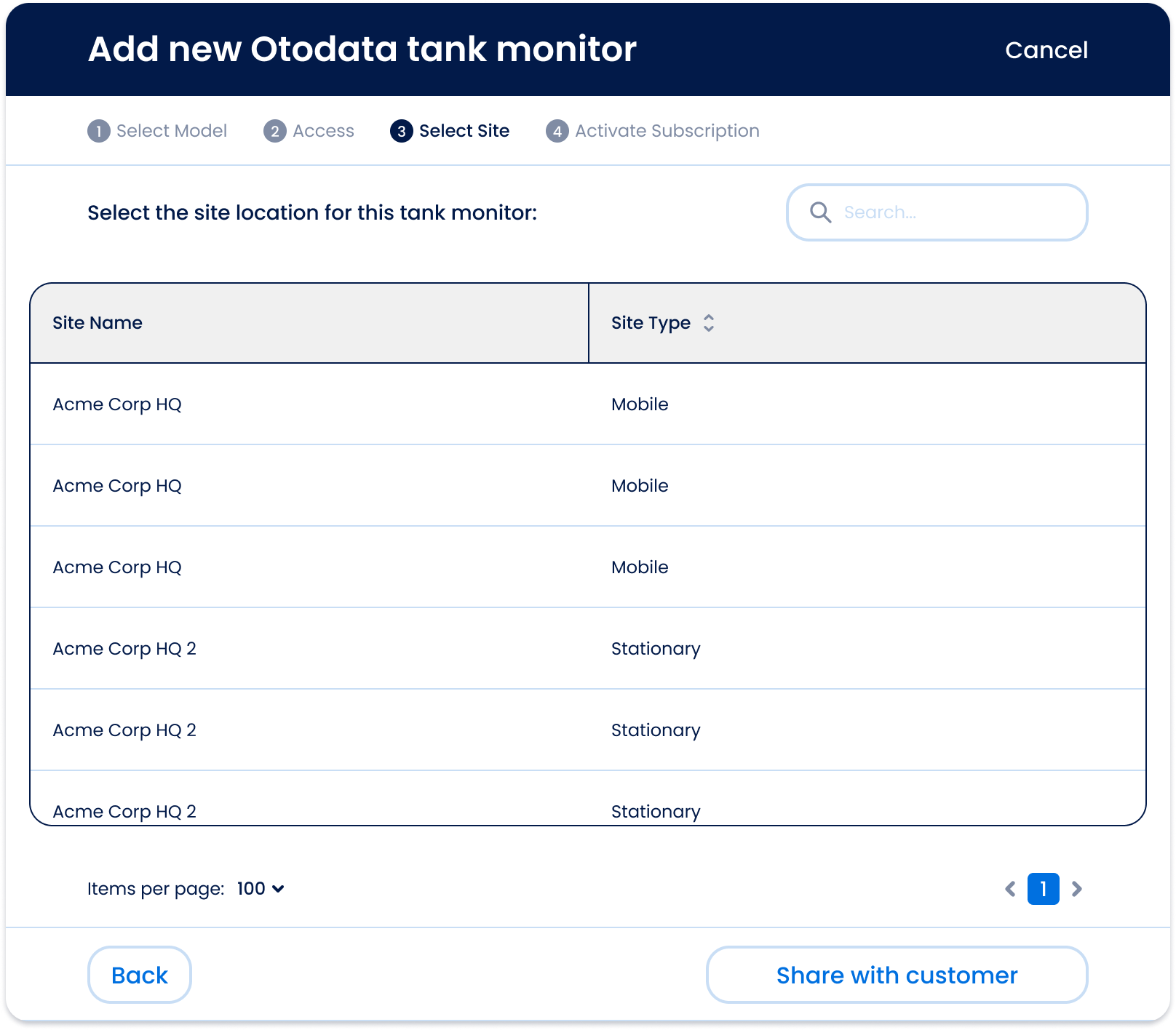

Select a Site to add your Otodata Tank Monitor.
- Note: This step will be skipped if adding the device on a Site Detail page.
- Note: If you are a Jobber and are sharing this device with a customer, choose any site at this step you will be able to share the device after the subscription is activated.
-

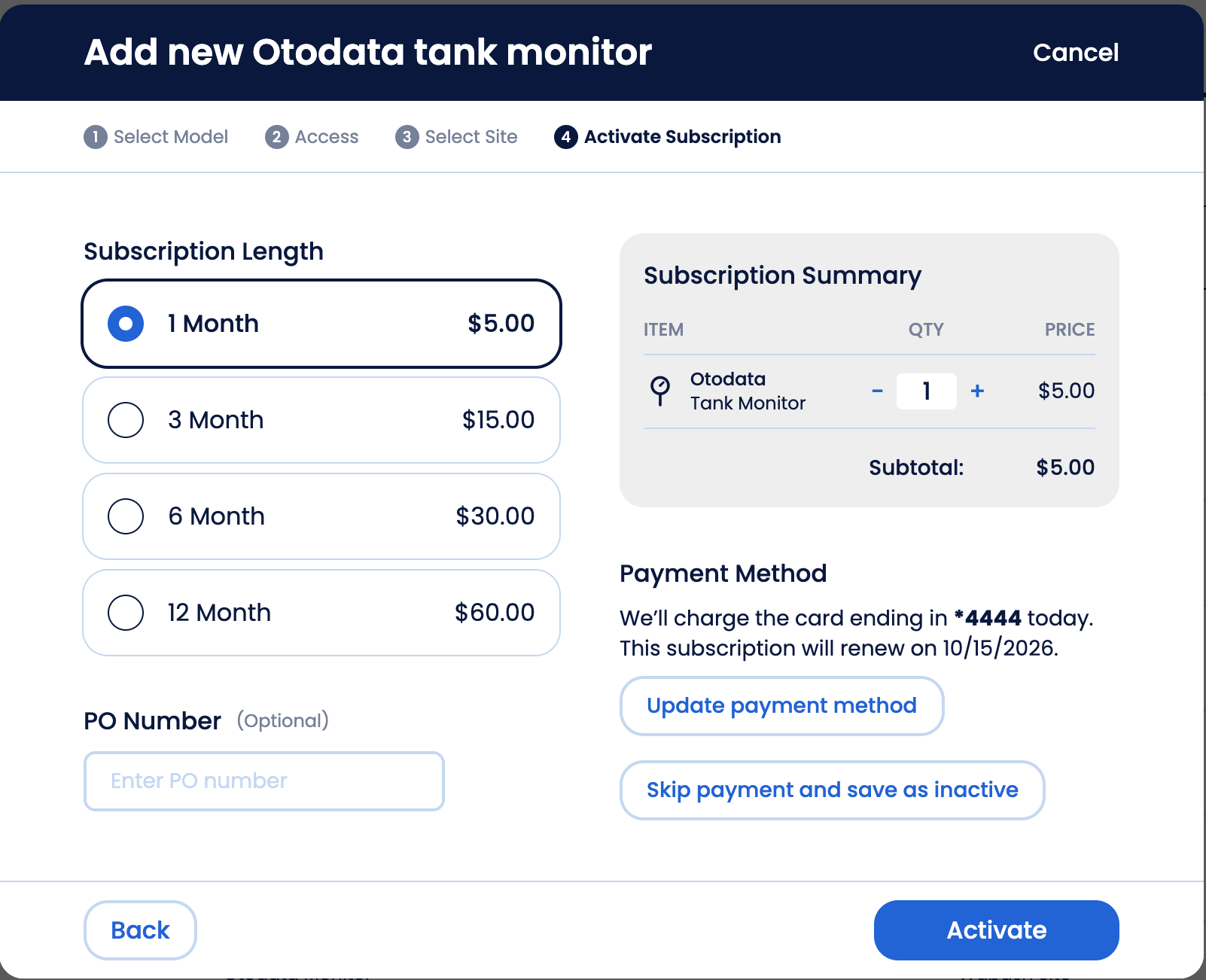

Activate your Subscription. You can choose 1, 3, 6, 12 month subscription lengths at the price of $5/month.
Configuring A Tank Monitor On FuelCloud
Note: If you are a Jobber and sharing this device with a customer, skip to the Sharing your Otodata Tank Monitor section to start sharing then come back to this section to finish configuration.
-

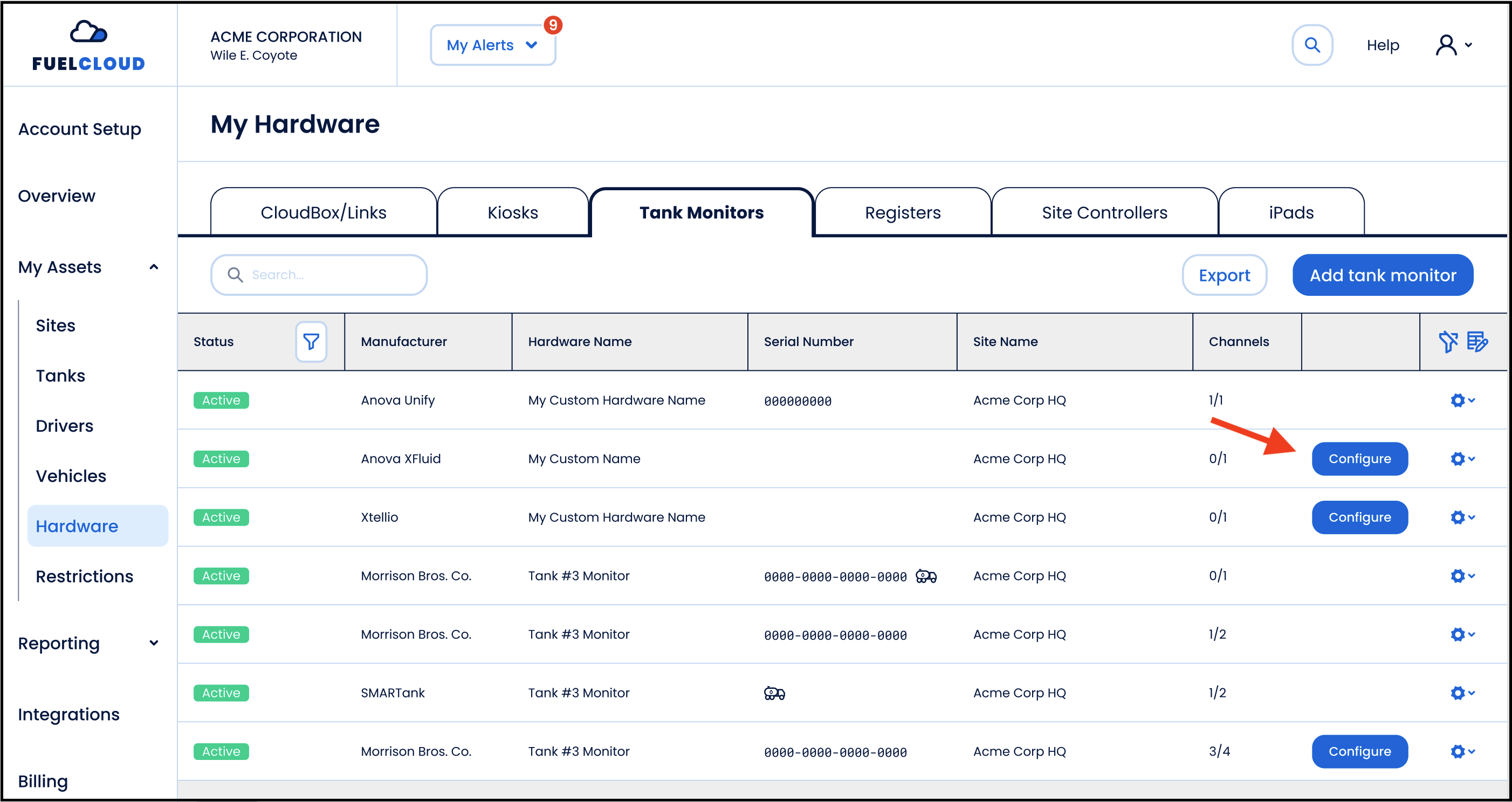

Configure to select your Tank Monitor and connect it to a Tank. If clicking Configure from the Hardware page, you will be taken to the Site Detail page to configure your Tank Monitor.

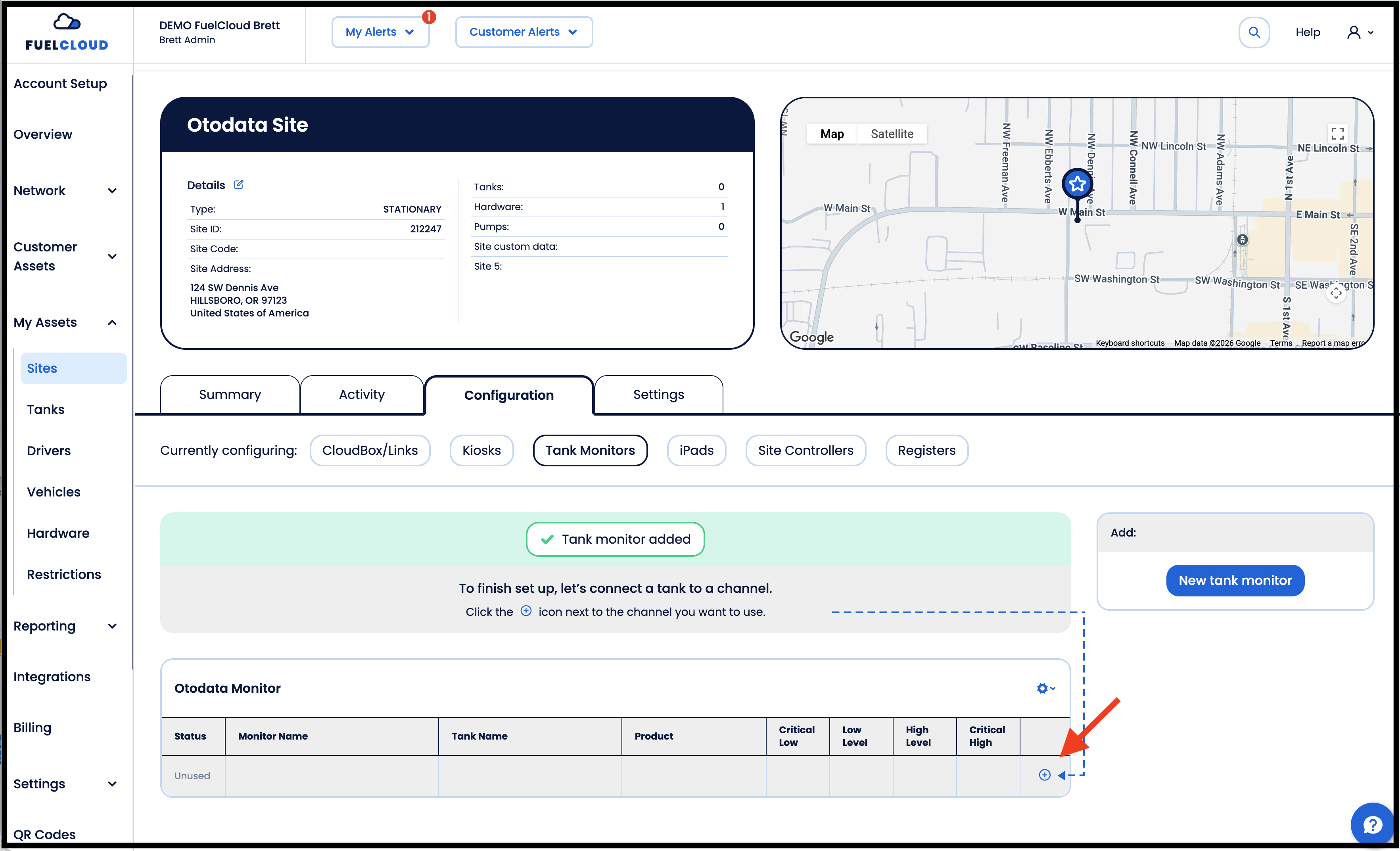

- Click the + icon to select the Tank Monitor and Tank.
-

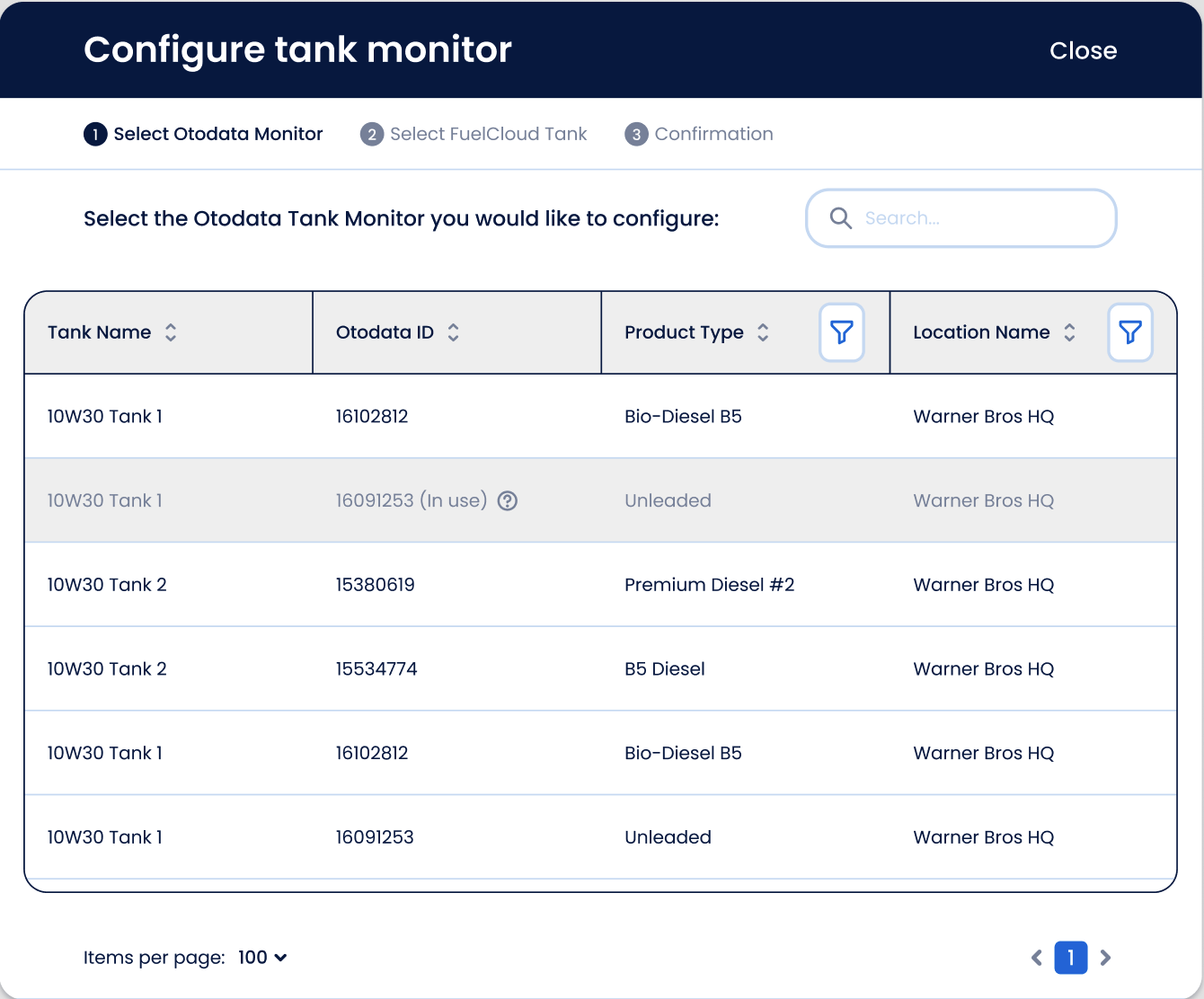

Select the Otodata Tank Monitor that you would like to configure.
-

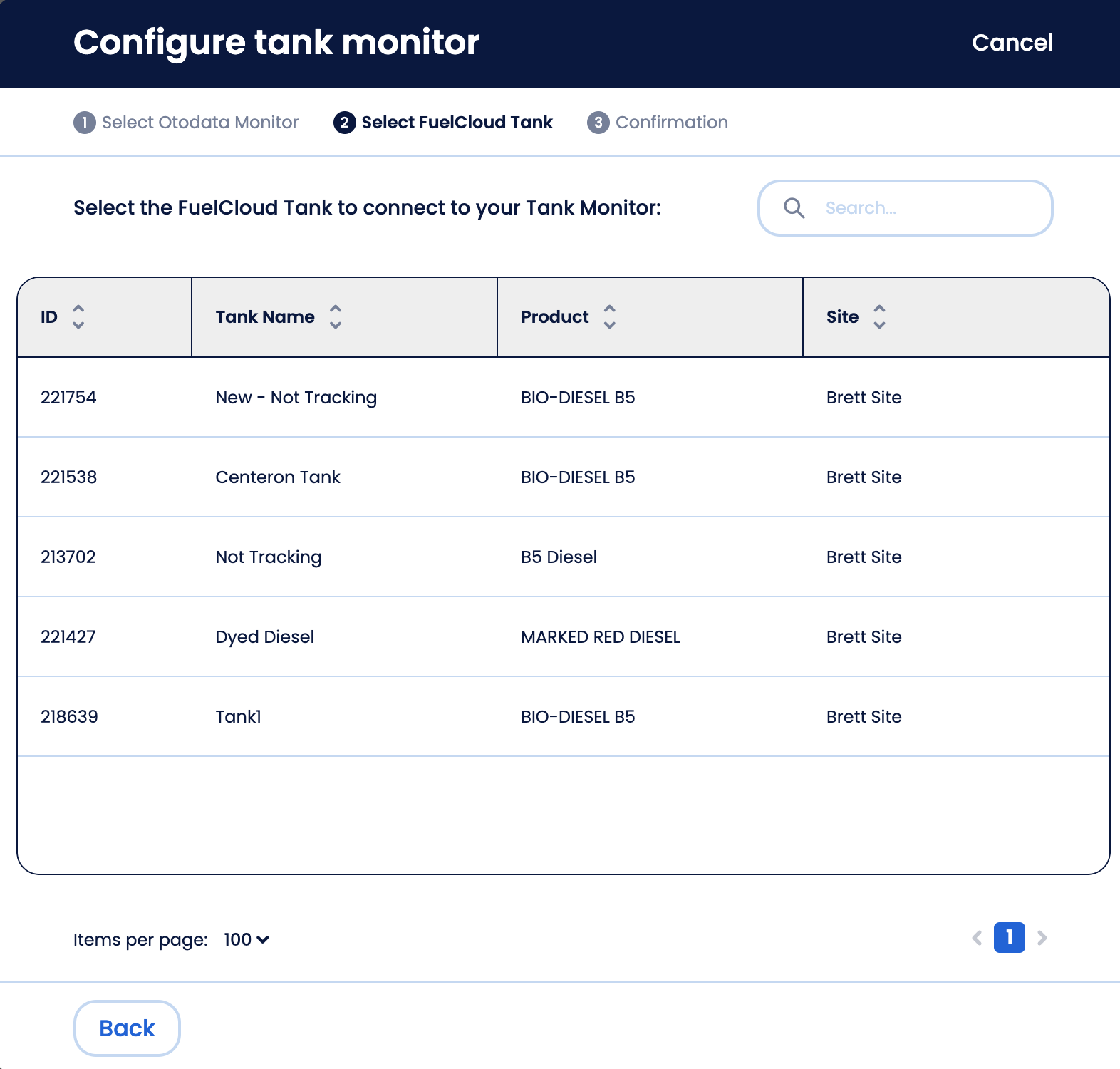

Select the FuelCloud tank you would like to connect.
-

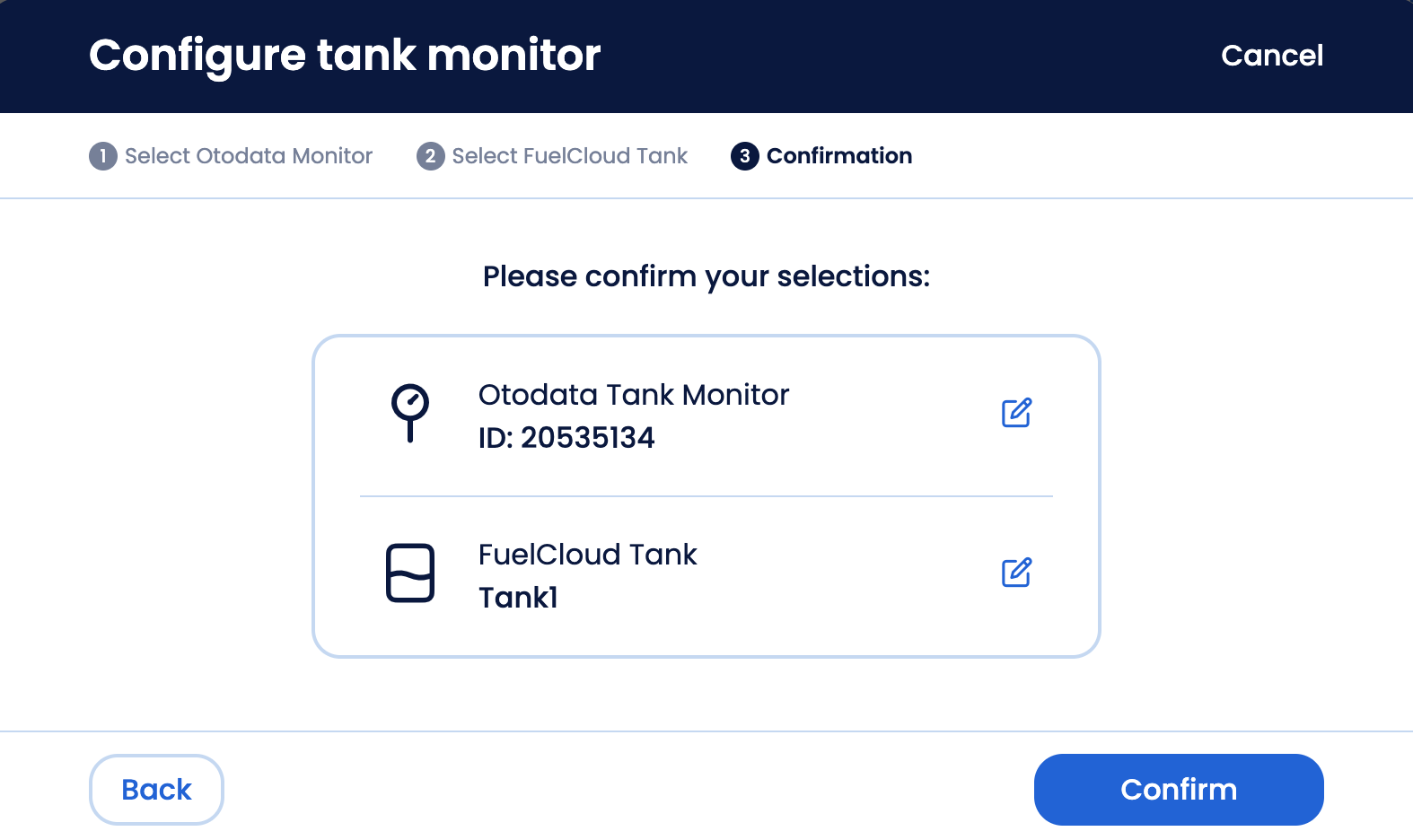

Confirm your selections.
Sharing your Otodata Tank Monitor

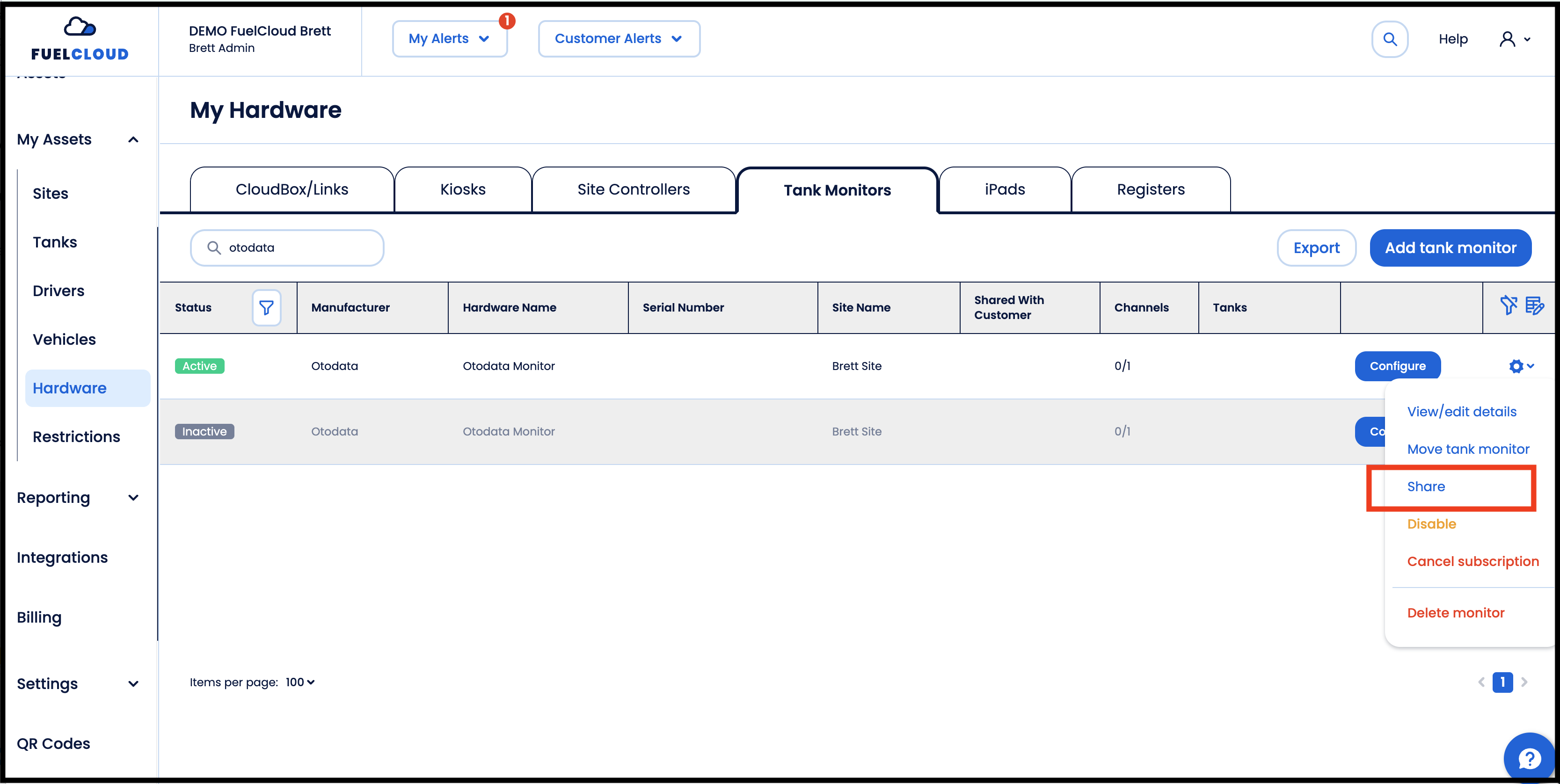

1. From the Hardware page click the settings cog Quick Menu, then select Share.

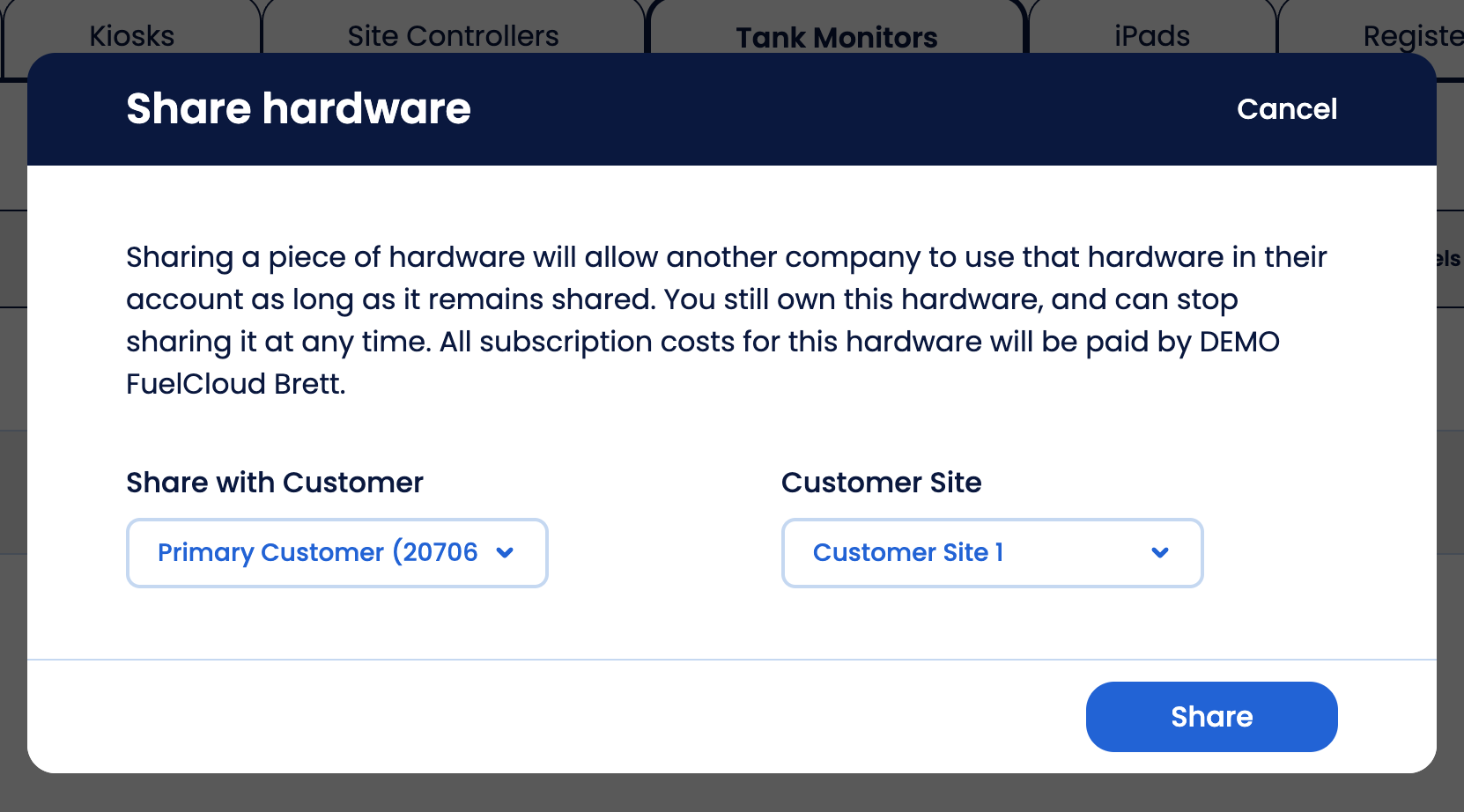

2. Select the Customer and Site to share the device with.
3. Configure the tank monitor in the Jobber account following the steps here: Configuring A Tank Monitor On FuelCloud

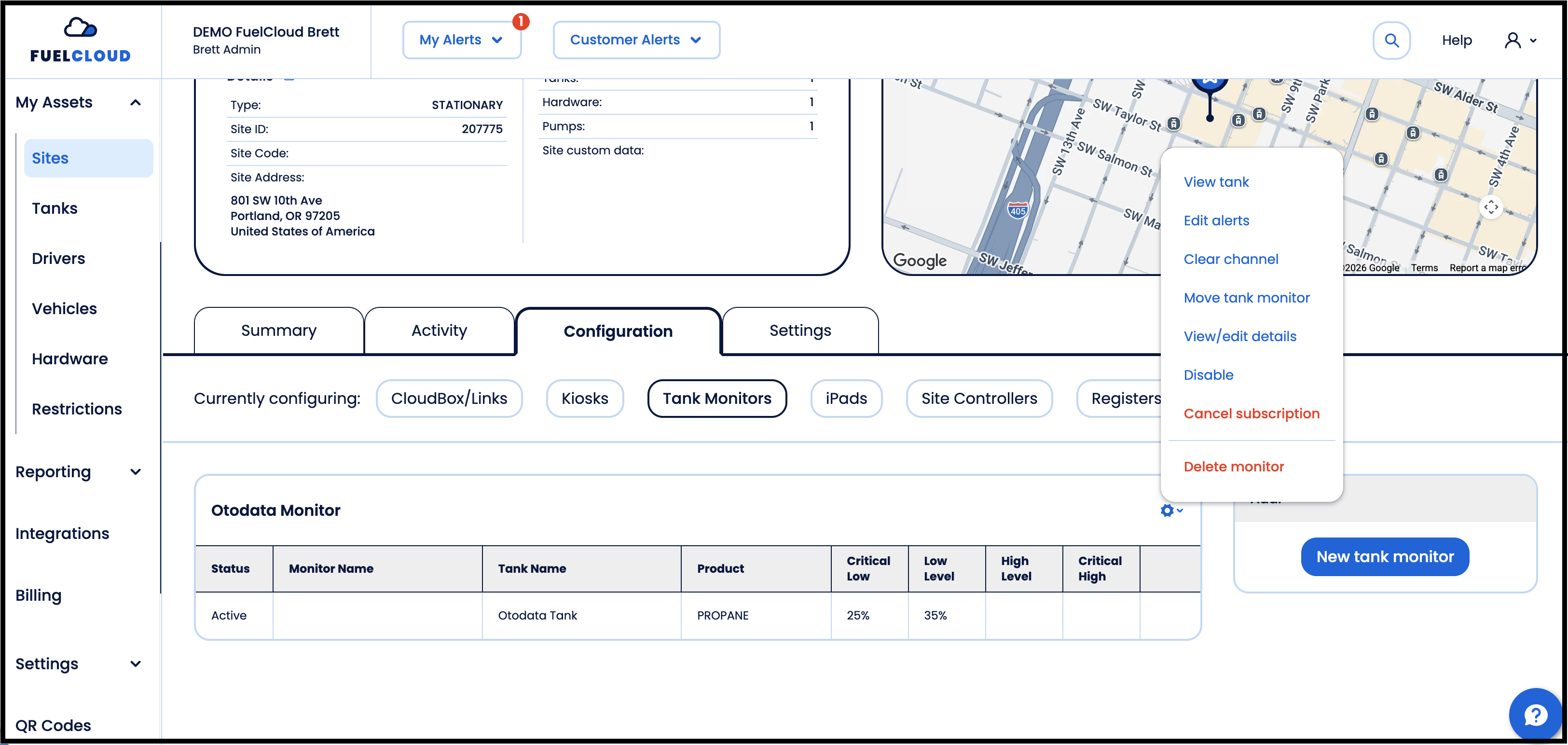

Quick menu options from Site Detail > Configuration > Tank Monitors
- View tank
- Takes you to Tank Activity Table
- Edit alerts
- Takes you to Tank Level Alerts
- Clear channel
- Clears the Tank and Site from the channel resetting it to it's default state of un-configured.
- Move tank monitor
- Allows you to select a different Site/Tank for the Monitor
- View/edit details
- Allows you to change the Tank Monitor Name, API Key, and add an optional PO number
- Disable
- Makes the device Inactive
- Cancel subscription
- Delete monitor

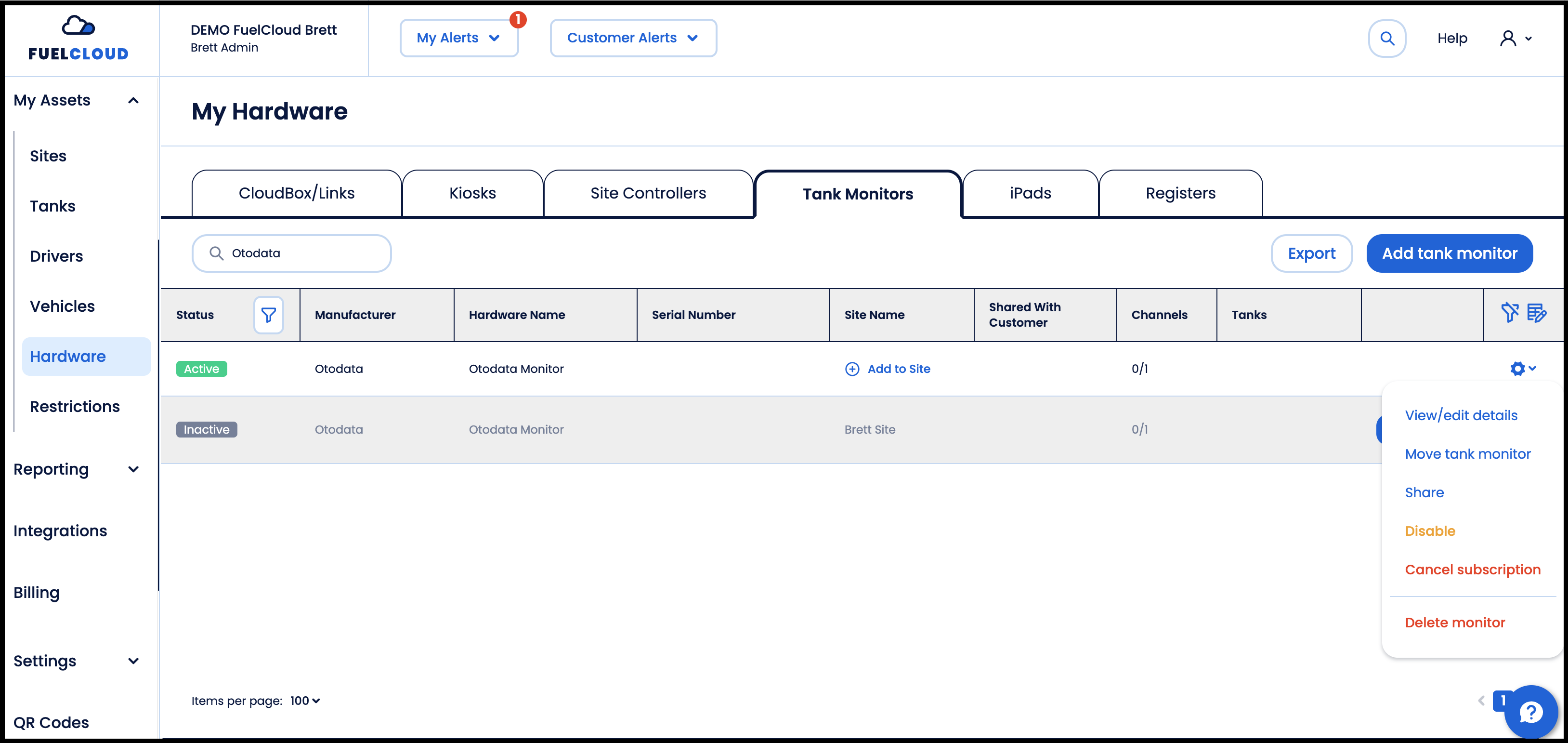

Quick menu options from Hardware > Tank Monitors
Quick menu options:
- View/edit details
- Allows you to change the Tank Monitor Name, API Key, and add an optional PO number
- Move tank monitor
- Allows you to select a different Site/Tank for the Monitor
- Share
- Allows you to pay for the subscription while a Customer uses the Tank Monitor on one of their Tanks
- Disable
- Makes the device inactive
- Cancel subscription
- Delete
Otodata Update Transactions
Due to the way Otodata collects readings from their tank monitors and transfers that information through their API it is a normal occurrence for readings to take 30+ mins to hit the FuelCloud System. The delay in readings also peaks at certain times of day as more reading go through the Otodata system.
Delayed Update Transactions
- Delayed update transactions are transactions that are sent to FuelCloud more than 7 minutes after the reading was recorded on the tank monitor.
- For these transactions, FuelCloud will show the volume, cost, and inventory after. They will be labeled as "Delayed Update".
- If other transactions were recorded on that tank in the time between the reading and when it was uploaded, the Admin will need to Reconcile the transactions following the Otodata Update transaction.
- For this type of reconciliation the Admin should select the Otodata Update itself as the starting checkpoint.
Back & Forth Changes in inventory
- If you notice a slight back and forth variation in inventory this is normally due to temperature changes, it can make a 1-2% change on the dial and Otodata adjusts accordingly to what is read.
